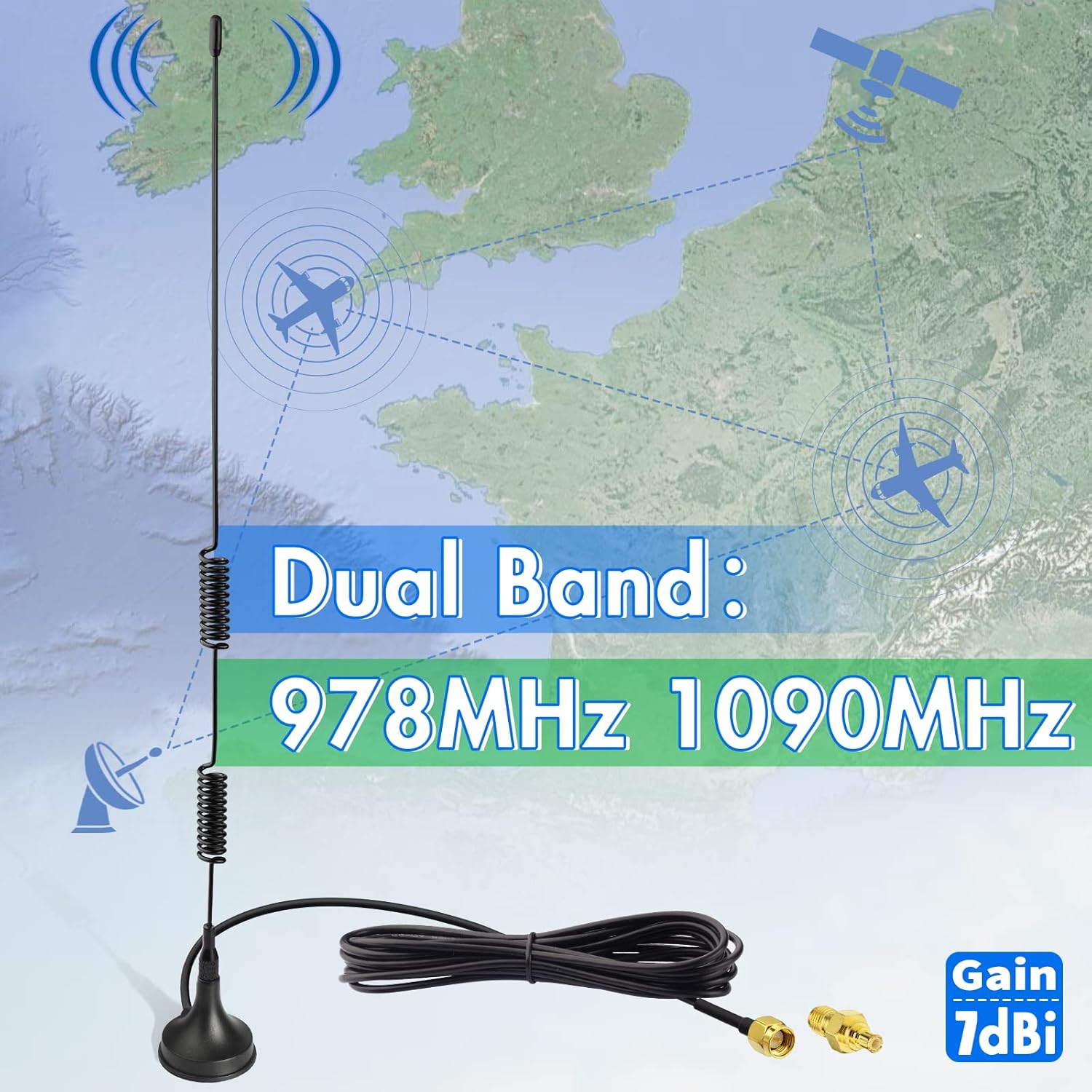

Bingfu Dual Band 978MHz 1090MHz 6dBi Magnetic Base SMA Male MCX Antenna for Aviation Dual Band 978MHz 1090MHz ADS-B Receiver RTL SDR Software Defined Radio USB Stick Dongle Tuner Receiver
$9.99
Price: $9.99
(as of Nov 10, 2025 18:23:55 UTC – Details)
Product description
Specifications:
Gain: 6dBi;Frequency Range: Dual Band 978MHz 1090MHz;Compatible with: RTL SDR Software Defined Radio SDR ADS-B Receiver USB Stick Dongle Tuner;VSWR: <2.0;Impedance: 50 ohm;Direction: Omni-directional;Antenna Connector: SMA Male Connector;Accessoried Connector Adapter: MCX Plug to SMA Female Connector Adapter;Feature: Magnetic Base Mounting;Net Weight: 68g;Operating Temperature: -20°С ~ +80°СStorage Temperature: -30°С ~ +85°С
Package List:
1 x Antenna, 1 x Connector Adapter (As the Picture Shown);
Frequency Range: Dual Band 978MHz 1090MHz; Gain: 6dBi;
Antenna Connector: SMA Male Connector; Accessoried Connector Adapter: MCX Plug to SMA Female Connector Adapter;
Feature: Magnetic Base Mounting; Impedance: 50 ohm; Direction: Omni-directional;
Package List: 1 x Antenna, 1 x Connector Adapter (As the Picture Shown);
Compatible with: RTL SDR Software Defined Radio SDR ADS-B Receiver USB Stick Dongle Tuner;
Customers say
Customers report mixed experiences with the antenna’s functionality, with some saying it works well while others find it doesn’t perform amazingly. The signal quality receives mixed feedback, with one customer noting measurable increases in plane detection, while another mentions it’s not as good as a 1/4 wave antenna.
13 reviews for Bingfu Dual Band 978MHz 1090MHz 6dBi Magnetic Base SMA Male MCX Antenna for Aviation Dual Band 978MHz 1090MHz ADS-B Receiver RTL SDR Software Defined Radio USB Stick Dongle Tuner Receiver
Add a review
Related Products
$9.99
Shahar Hammer –
It’s working really well
It’s working really well
P. A. Wakim –
Base and cable are high quality, antenna whip may not be optimal for 1090.
After a lot of testing, i found by combining the supplied screw in base and cable with my existing antenna whip (see image – screws on perfectly) I do get measurable increases in both planes detected and distances – see graphs.What is a little confusing is i cant hit this same level of performance with the antenna whip they supplied which is meant to be 6dBi yet my old whip is quoted at only 2.5dBi. I read some reviewers found the antenna length isn’t tuned optimally for 1090Mhz, so this may confirm that theory.I’m taking my hybrid combination as a win.
Hereticus –
ok
ok
M57 –
Avoid!
Horrible antenna. Swapped out a smaller ADS-B antenna thinking this would work better, and instantly see less than 10% of what the “free” antenna picks up. Going back to the Antenna that came with the USB receiver now.
Dave –
work
Work very good, would buy again
Stephen B –
Cut it to a 1/4 wave antenna for ADS-B reception
At it current length the max range topped off at 40 miles. When cutting the antenna at 69mm, which is 1/4 of the wave length my range more than tripled to 135 mile range. I use it strictly for ADS-B aircraft traffic only.
MH –
It’s a failure
Fails to work correctly on 1090 mhz my ADS suffered. Not a good choice.
Cory C. –
Magnet is too week
The antenna reception is good but the magnet is too week for a mobile application. At first I was happy with the antenna driving around town but as soon as I was on the highway (70 MPH) it flew off of my roof. I have another magnetic antenna on my truck for AIS data and the only thing that has nocked it off was tree limbs.
yam –
標準で付属するアンテナのほうが受信性能が良かった。
David C. –
Works great have picked up planes 170nms out which I found really crazy for this antenn.
Amazon Customer –
Despite nominal performance of this antenna is shown as “6dBi”, actual performance of this definitely less than the “NooElec ADS-B Discovery 5dBi”, .Since my coverage area was shurinked under 1/2 from NooElec’s, I have ceased using this.
Adam Hubert –
I purchased this antenna to go with the RadarBox receiver. This antenna plugged into the receiver and within seconds my Radar Pi started tracking Aircraft in my area. I have my Antenna in ann office window on the ground floor with next to no mountains or valley to interfere with the radio signals. The higher you are able to mount this antenna the greater coverage you will receive.This antenna works great for my application as a plug and play setup allowing my Radar Pi to show aircraft without needing to solder my own components. Comparing my Radar Pi aircraft signatures using this antenna to any online Radar tracking website, Im getting the same Aircraft Data within roughly 150km radius of my location. Keep in mind with an radio frequency this is subjective to interference and ground obstructions, if you live in a Valley or mountainous region you may have limited range.
Bus_sra_cool –
Not tuned for 978/1090MHz at all. Range of ads-b receiver now only 30nm but at the top of a roof, previous telescopic antenna was sitting behind a door at half the elevation with 150nm reception range. DO NOT BUY. Make your own.
